Anybody got pictures of CT Clamps on the AIO+Gateway

#1 Jellybaby 2023-08-20

Bit late in asking this but it completely slipped my mind, my installer is coming tomorrow to switch over to LAN and I was wondering if anybody with a working system has any pictures of how their clamps are installed because im still getting no consumption numbers showing up and daily readings of the same day via power graph, energy graph and the thing when you scroll down on the dashboard all contradict each other.

I went through the installation pdf but couldnt see any info on how they should be applied there.

#2 Spike 2023-08-21

I'm pretty sure all the GivEnergy CT clamps are preinstalled within the gateway.

#3 hoggy 2023-08-21

All come fitted from factory.
There's 3:
Grid IN (Black)
PV IN (Black)
HOUSE/load OUT. (BLUE)

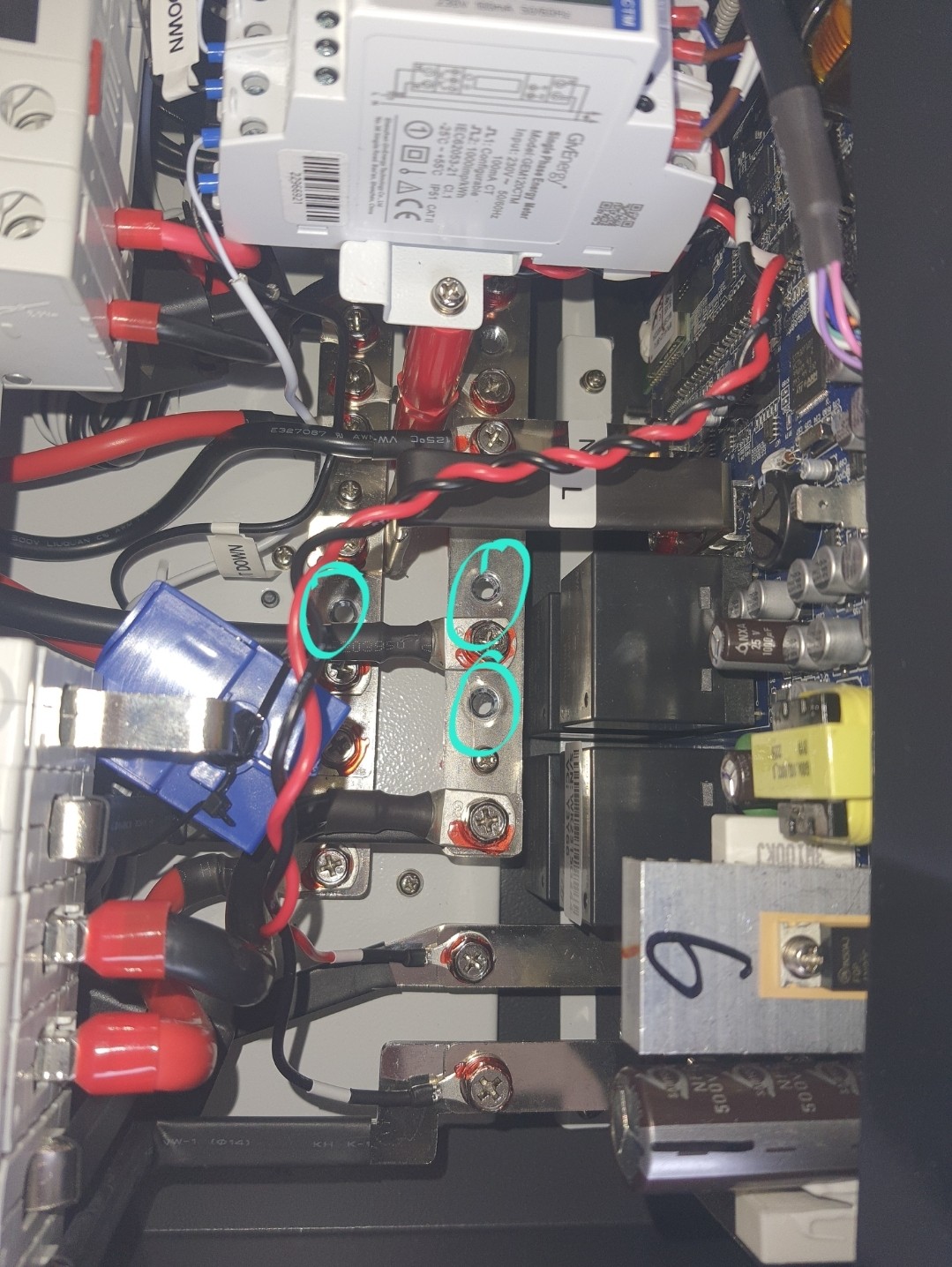

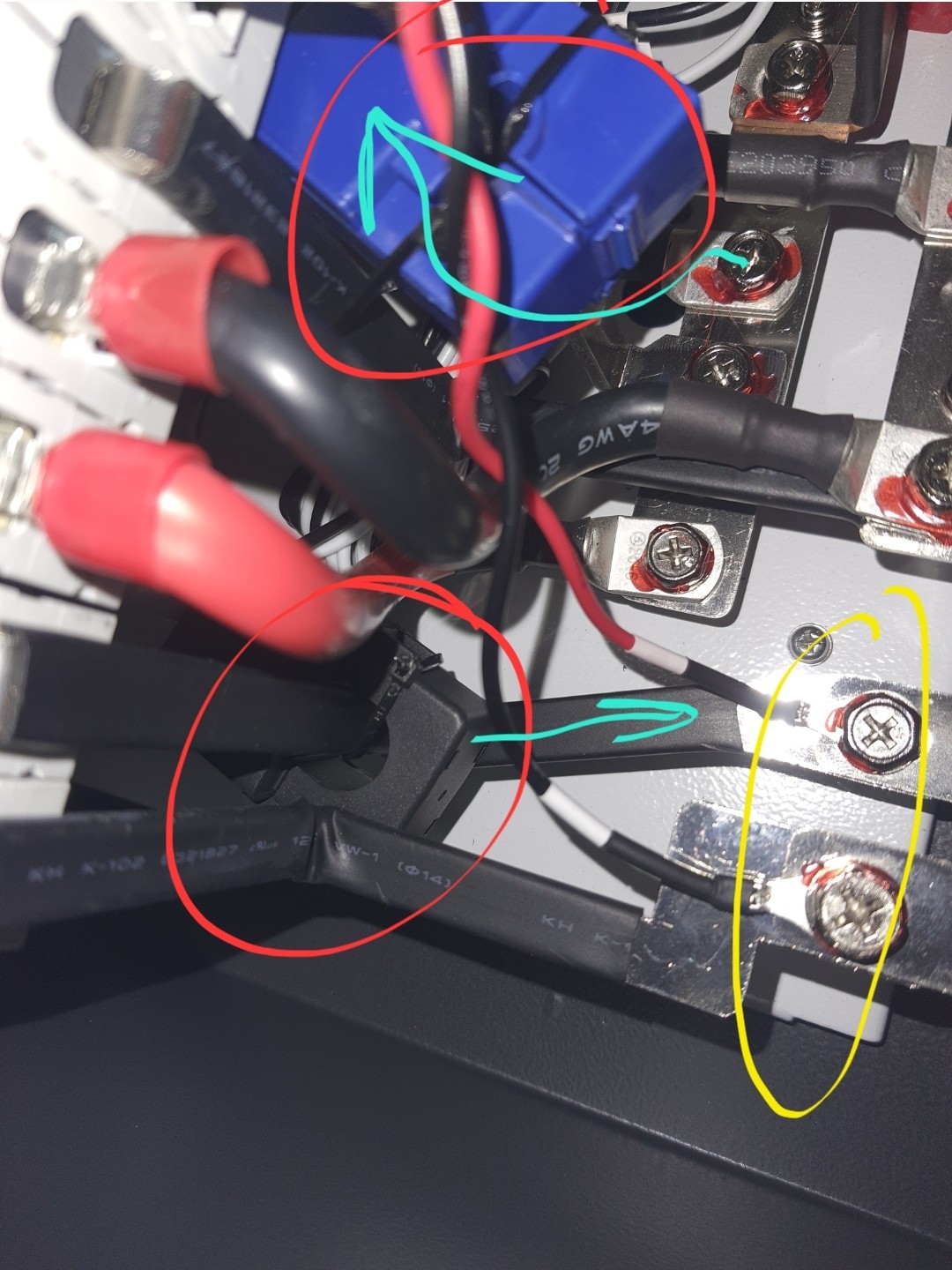

2 of those run from the EM115 meters, the 3rd runs back directly to the control board in the top/roof of the gateway. Ignore some of the circles, it's highlighting some spare point on the busbars form something else. Don't think you can see the PV ct on these pics very well, it's the black one under one of the em115 meters, not circled)
