Cell voltages vs % SoC

5 comments started 2026-09-11 last 2026-09-12
GivEnergy ProductsBattery
W
#1 wrighar

All my cells are showing around 3.2V after this evenings discharge down to 4%

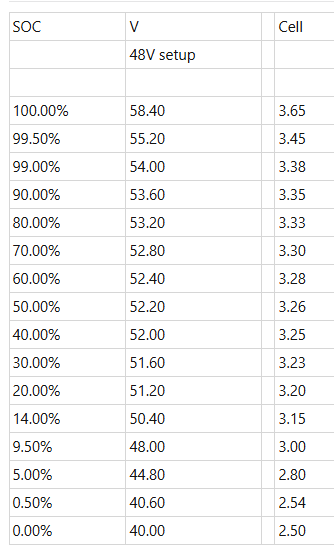

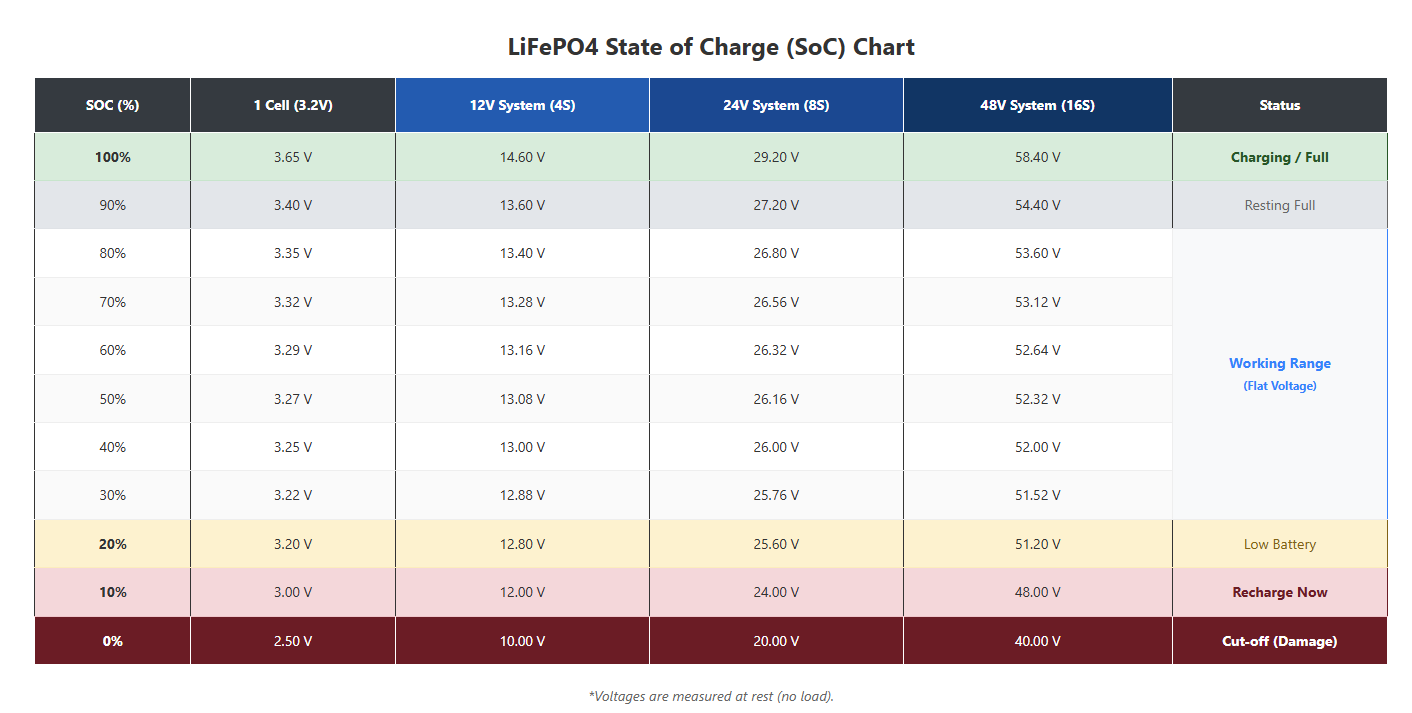

According to LFP SoC charges, tht should be about 17%-20%...
what empty cell voltages do other see??

W
#2 wrighar

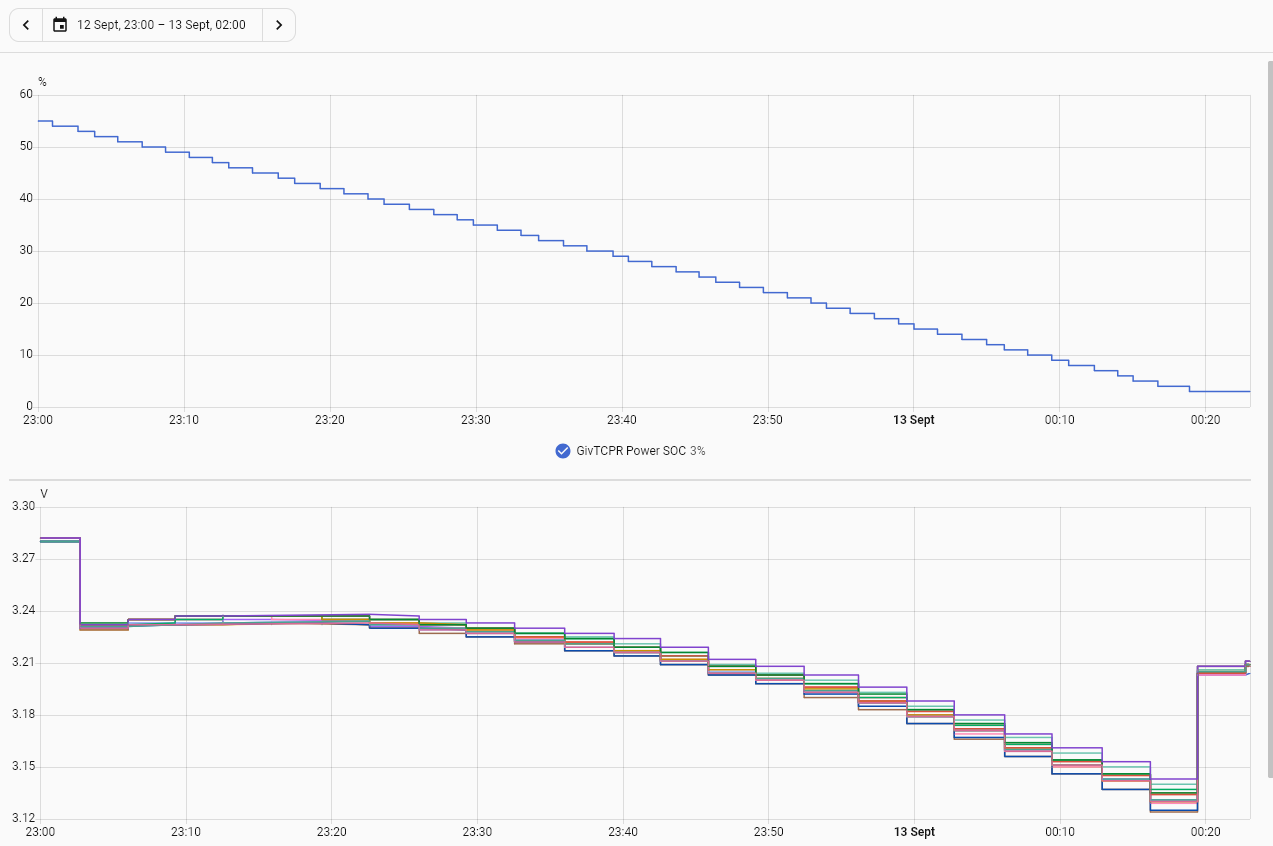

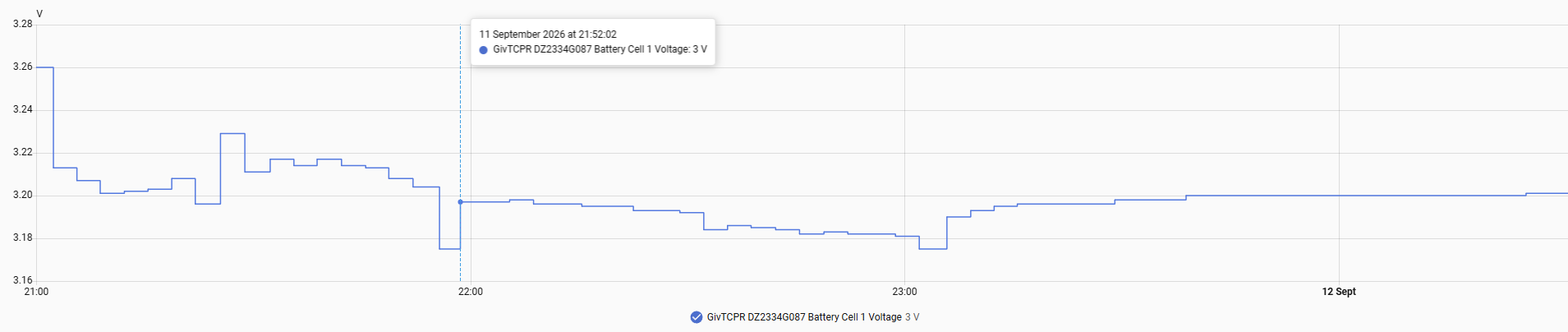

Or maybe this charge is better, and 3.2Vis the thing:

#3 Maxwell

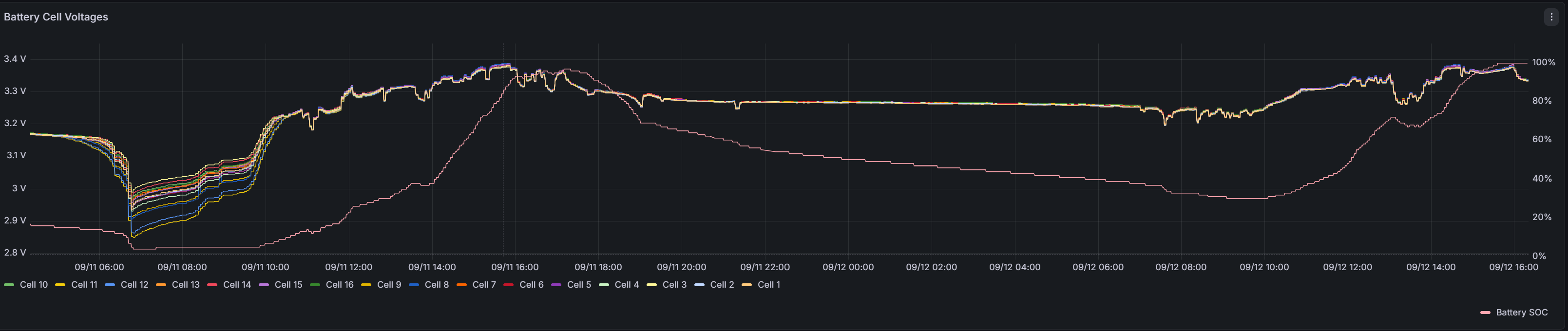

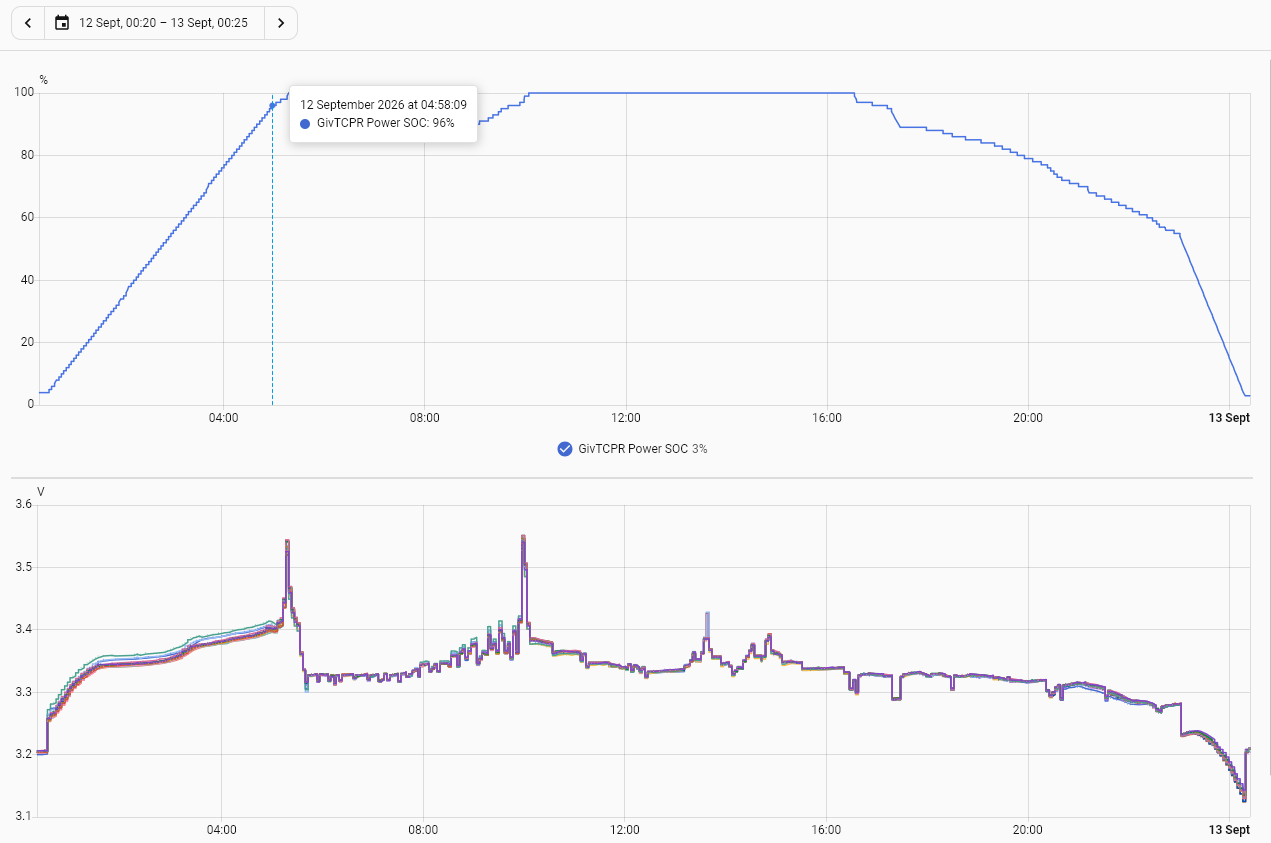

This was my latest when the battery fell to 4%.

N
#4 NormC

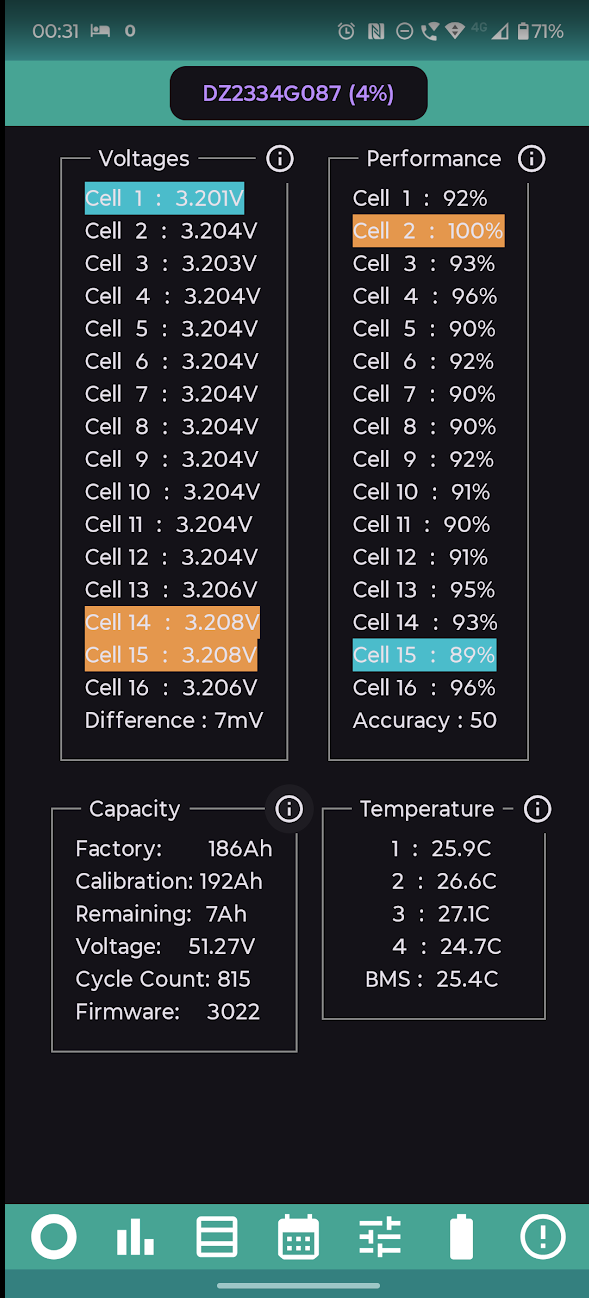

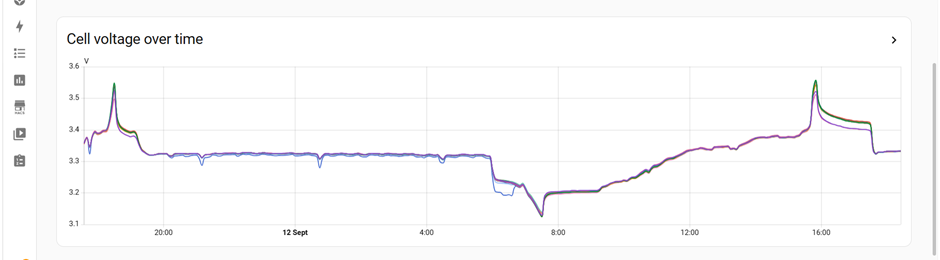

Mine also do the same when sat at 4%.

W
#5 wrighar
