Battery Temperature

4 comments started 2023-11-22 last 2023-11-22
GivEnergy ProductsBattery
M
#1 Manzi

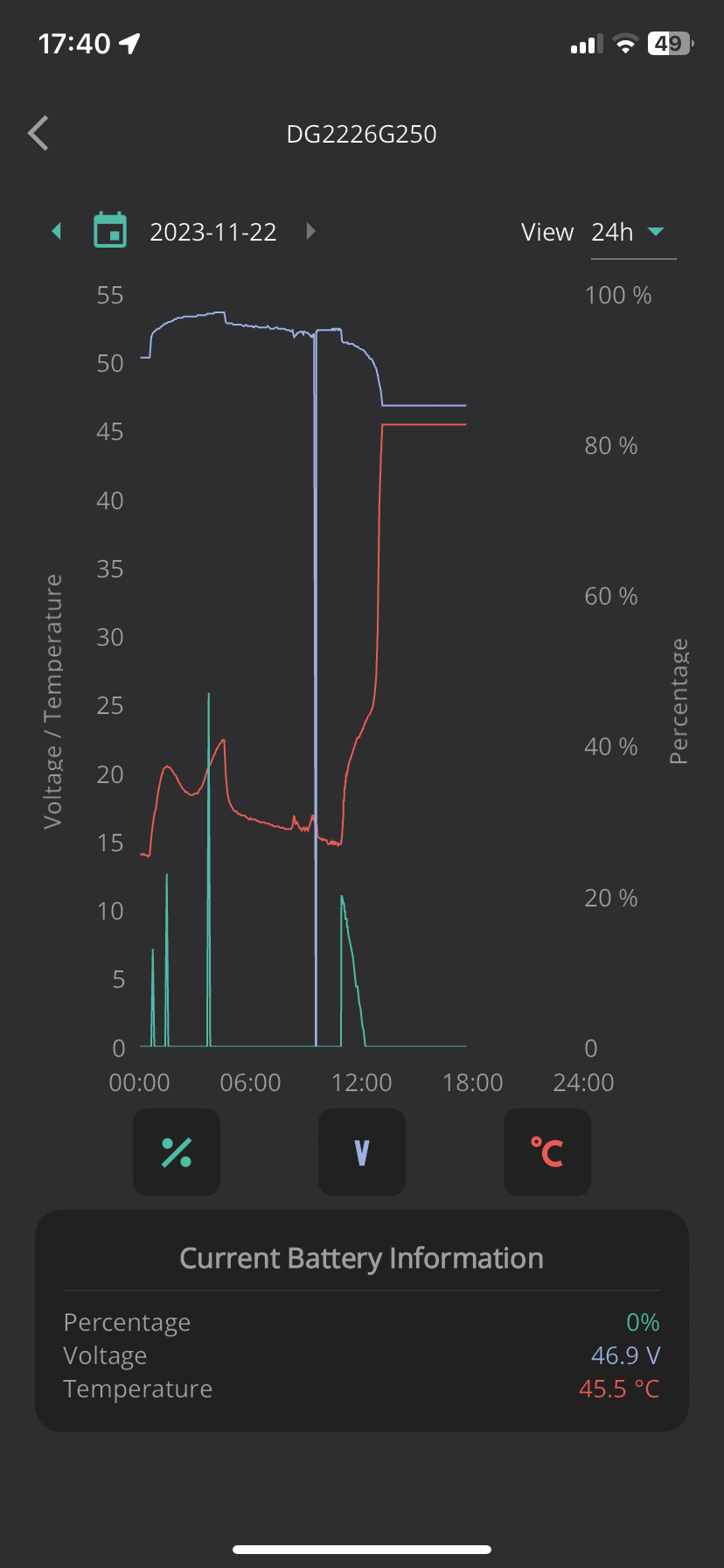

Is it normal for the battery temperature to be 45.5*C? Just noticed now when checking the status of our second battery that was installed yesterday. It’s still calibrating at present.

#2 hoggy

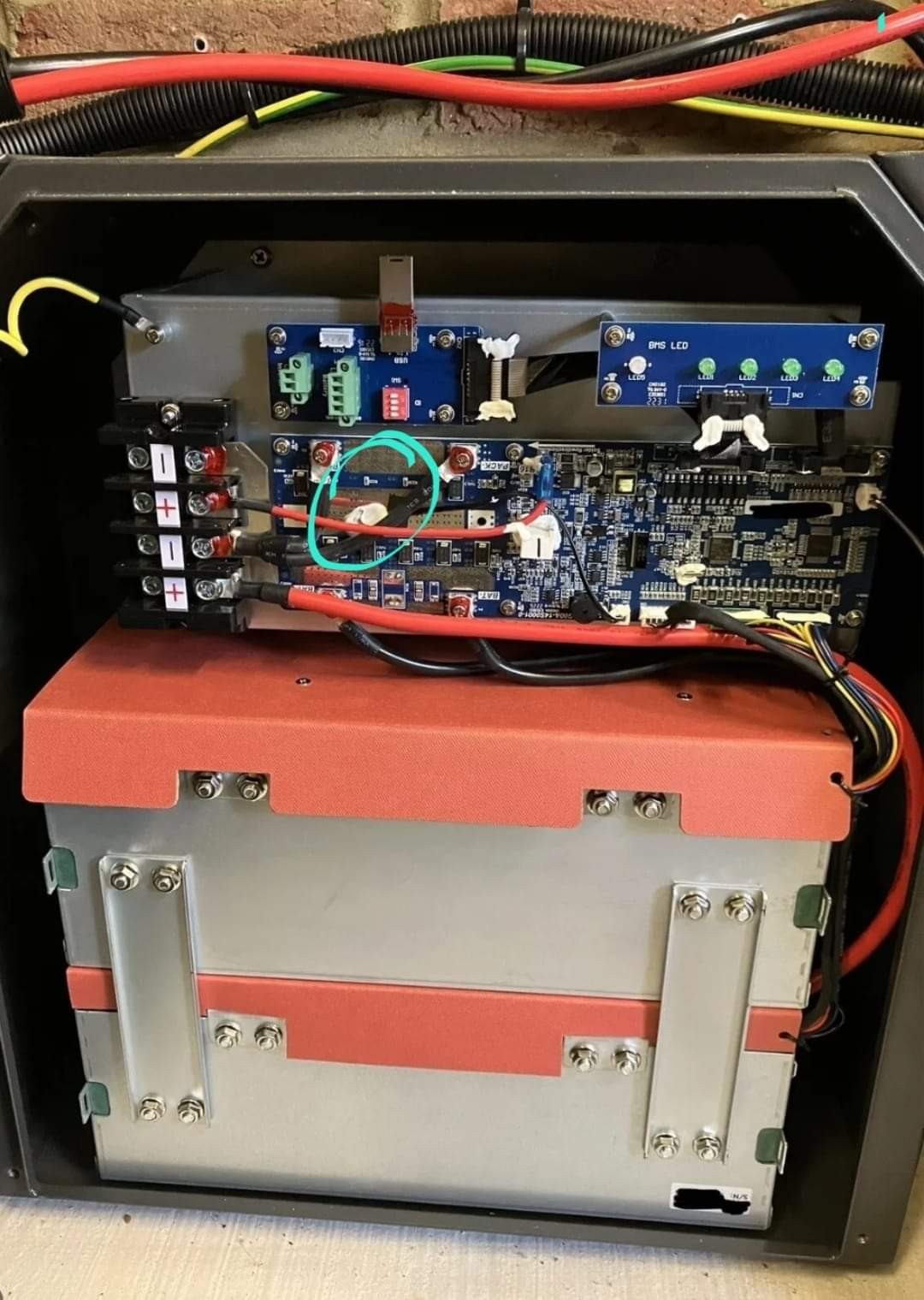

It's the bms temperature (circled) your seeing, not the cells which will be far far lower

M
#3 Manzi

Thanks. Should I be worried that it’s too hot?

#4 hoggy

Manzi not really, it's pretty normal temp.
Mine regularly hits 60'C on long discharge runs.

You will find if you have a single pack either 8.2 or 9.5 they run hotter than multiple batteries as the load is all on one BMS board as opposed to shared.

I have seen some BMS boards that have got that hot they unsolder their own Mosfets which is an amusing fault I guess. Not sure how well the temperature monitoring is fed back into the BMS to make it throttle down for that to ever happen though.
