My 10 kW Hybrid inderter is set to discharge from 18.30 to 23.30. I have DC coupled string solar panels. Export starts around 22.10. Is this because solar input prevens discharge? The same is true if I have timed charge at noon, it is not charging. At night times I have no problem. Can I change a setting in the Inverter app or cloud to solve this problem?
Nieuwkomer inderter is set to discharge from 18.30 to 23.30
Note that "timed discharge" is different from "timed export".
Does the timed charge start late, or not at all ? If the former, could it be that the inverter's clock is incorrectly set ?
Timed export does not start early enough. Clock is ok
Nieuwkomer On my gen 3 hybrid there are two different settings for timed discharge and timed export and they both behave differently.
I use timed export when i want to dump to the grid at peak export price time but also if needed it will supply the house if there isn't enough solar.
Also, on the gen 3 when you set timed export the inverter still operates in eco mode. I believe that from other posts on here some of the older ones end up disabling eco mode when you enable these other settings.

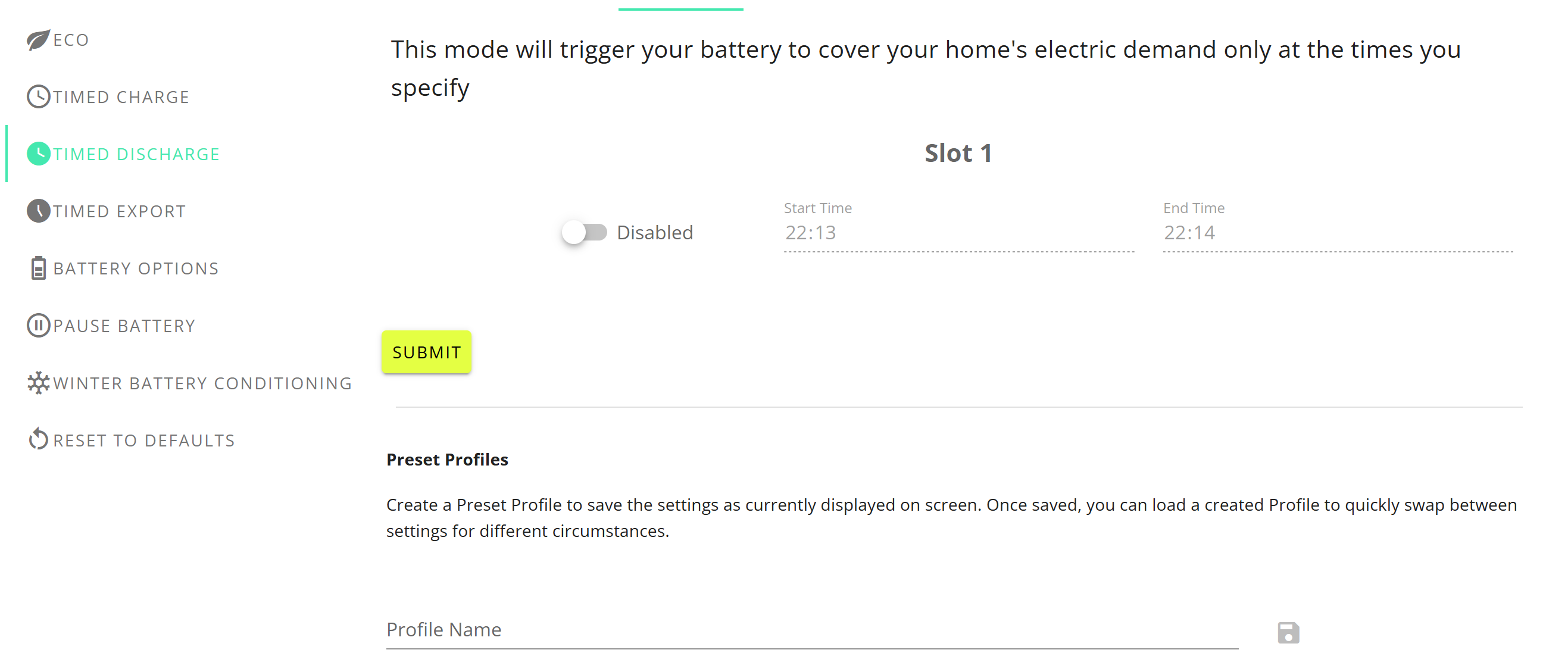

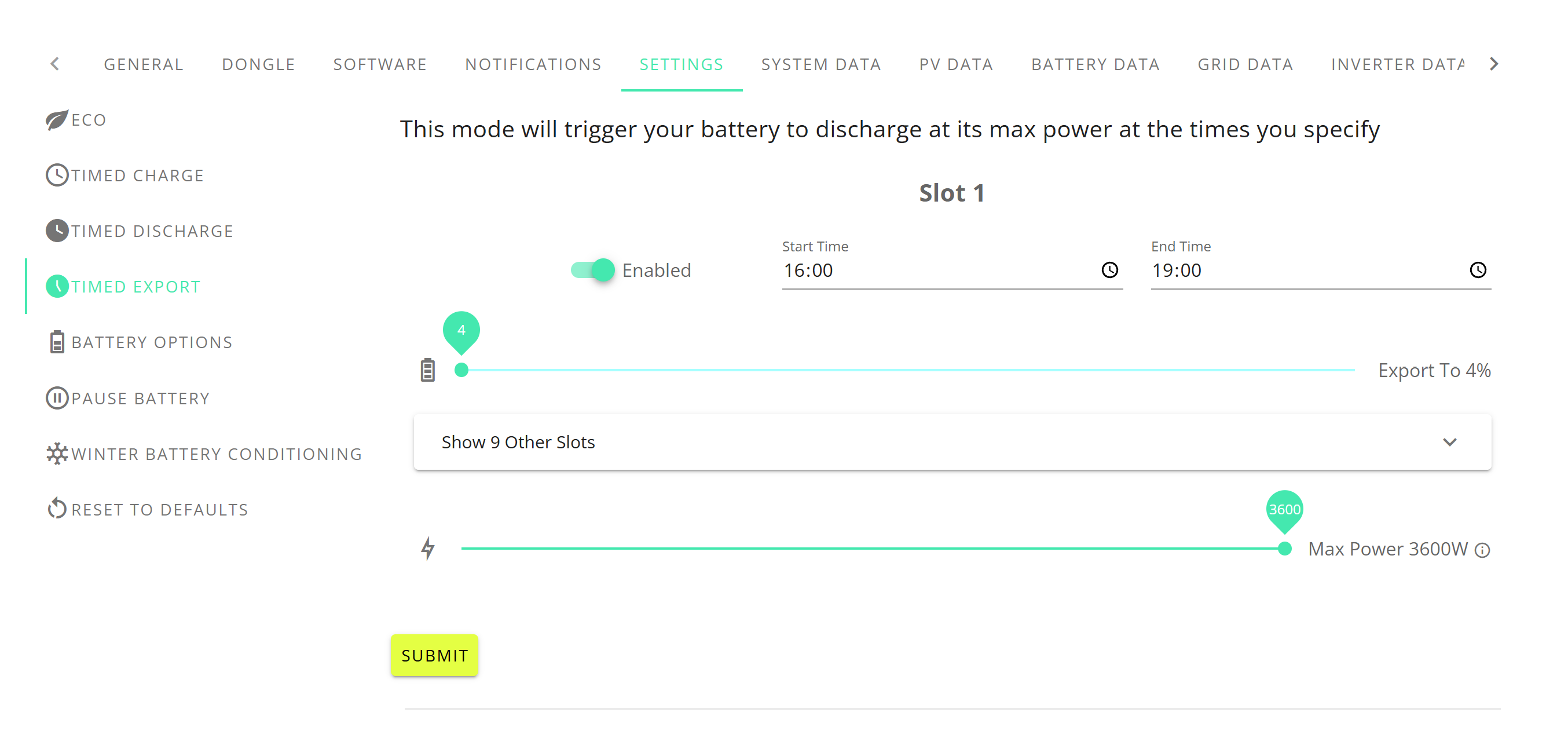

I do not see eco mode and i do not see discharge, only export, however in charge/ discharge schedule the term discharge is used, so in the cloud export and discharge are not clearly separated, in the app only export is mentioned. The app export settings is 100% identical with discharge settings in the cloud
Nieuwkomer does the battery bar at the bottom of the app confirm your intended schedule?
Between 18.30 and 22.10, does battery cover consumption, or is it idle?

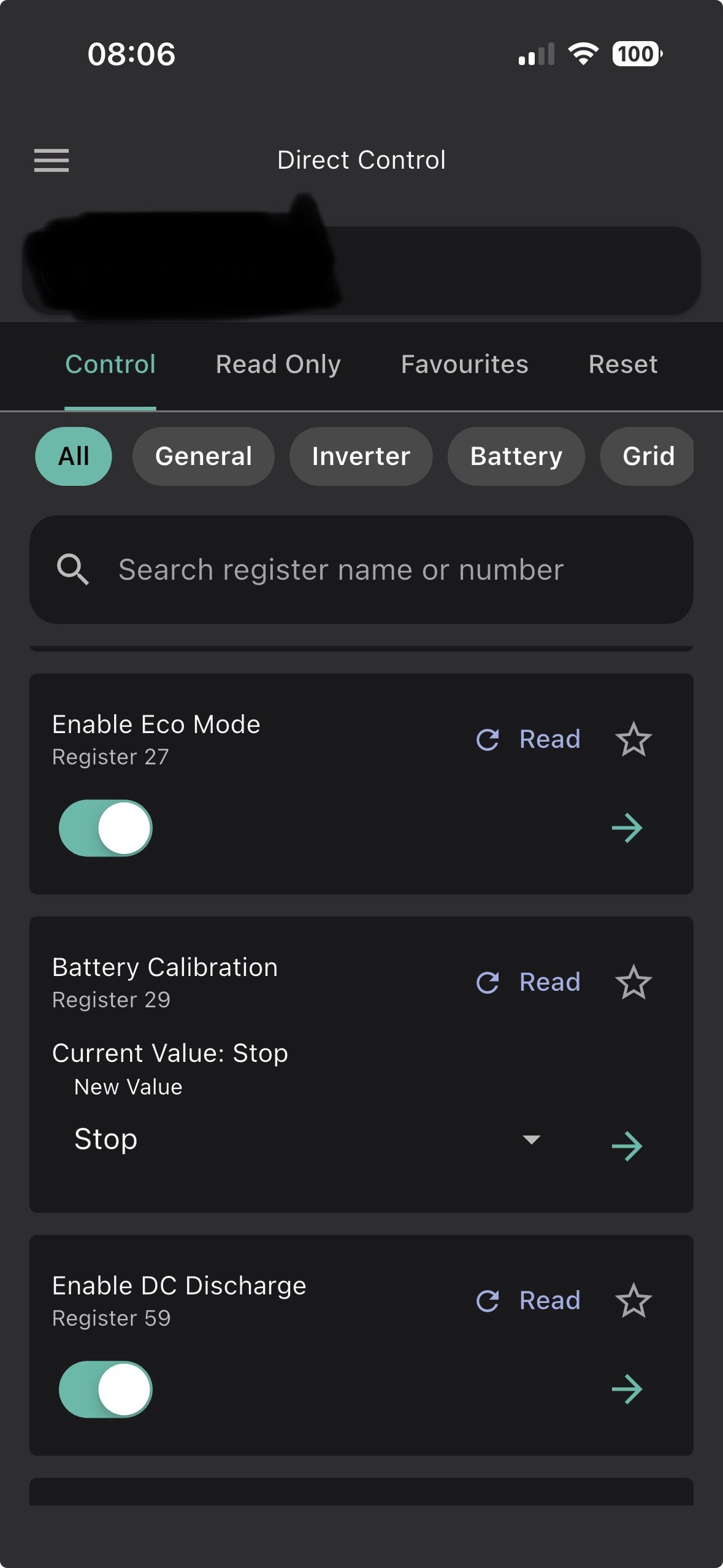

Nieuwkomer In the GE app there is no export distinction. Some strange issue with register differences across models etc I only see discharge enabled. So your inverter doesn’t have eco mode ? Which model is it ?
Maxwell. No eco mode, the app in the Netherlands is nog completely the same. And yes, the discharge is confirmed (written and read
Maxwell, I can see Real time control and this is switched off.

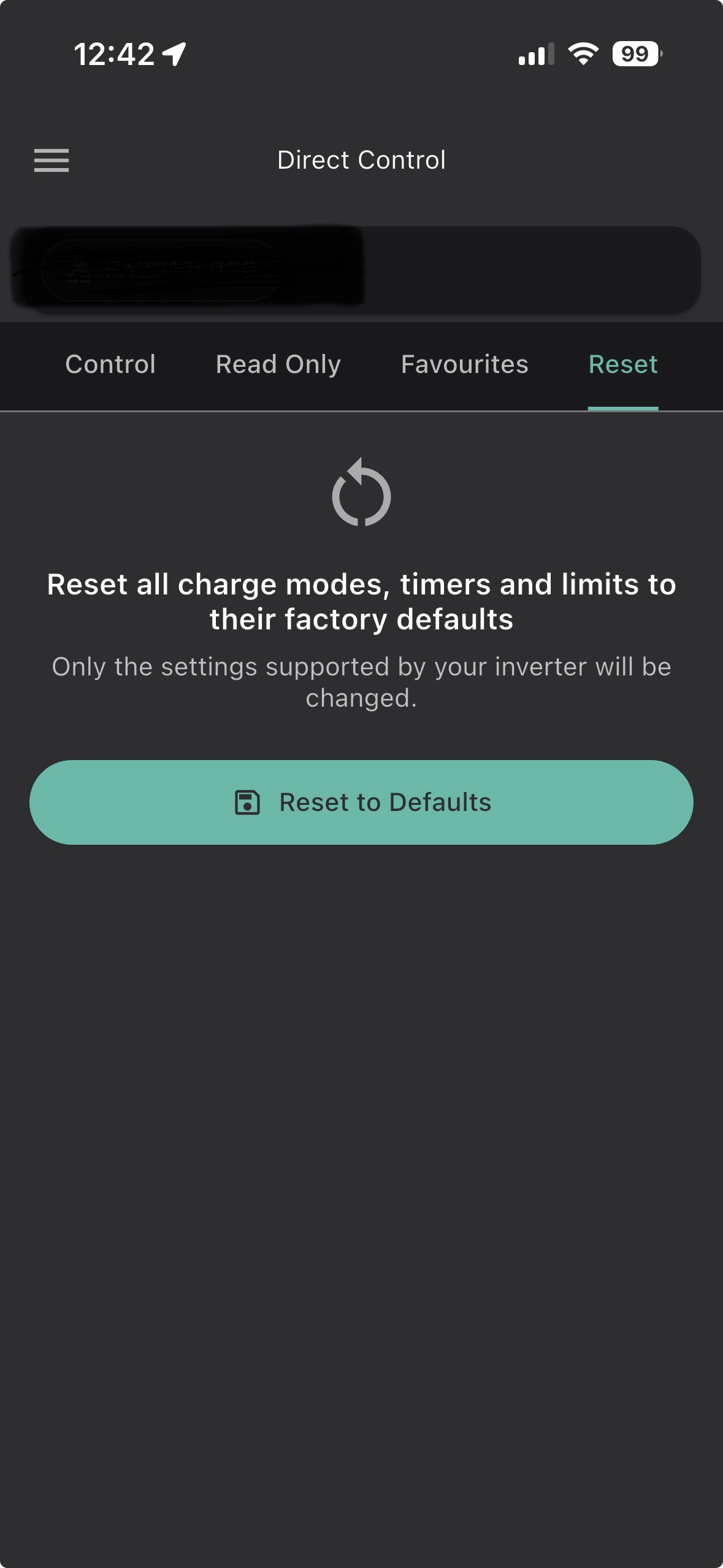

Nieuwkomer On mine Real time. Control is also off. There is a reset option on our app. If you have similar you could try that and start again with your settings.
Maxwell, this is my nuclear option. I am not sure if the system will recognise my DC string solar panels and also the emergency power settings gave a lot of problems in the past. I agree it can be the solution, but it might create bigger problems than the present one.
Nieuwkomer Is this your inverter ?
